Polyester(EP) Conveyor Belt

Short Description:

Polyester conveyor belt, also called EP conveyor belt, whose tension resistant body is canvas woven by polyester in warp and nylon in weft. (the longitudinal is EP, the transverse is NN) . The belts have the characteristics of low elongation in warp and good trough ability in weft, good water resistance, wet strength. The modulus of belt is high and elongation in service is small. The belt also has good heat stability and shock resistant. In that case the EP belt is suitable for middle and lo...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Polyester conveyor belt, also called EP conveyor belt, whose tension resistant body is canvas woven by polyester in warp and nylon in weft. (the longitudinal is EP, the transverse is NN) . The belts have the characteristics of low elongation in warp and good trough ability in weft, good water resistance, wet strength. The modulus of belt is high and elongation in service is small. The belt also has good heat stability and shock resistant. In that case the EP belt is suitable for middle and long distance, high load and high speed of conveying process.

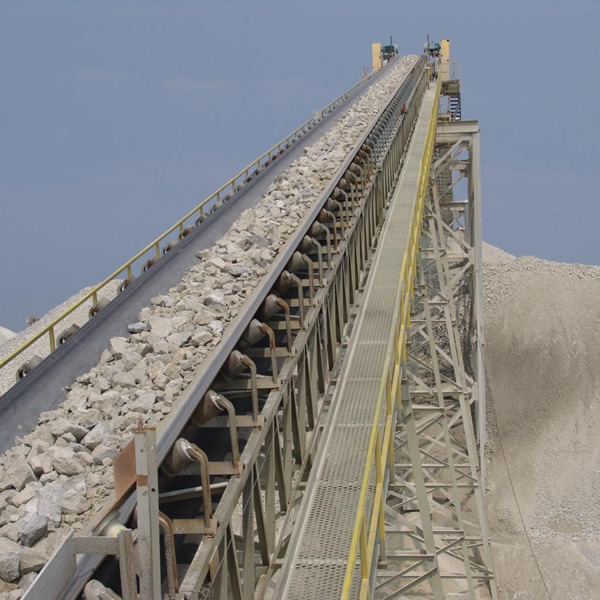

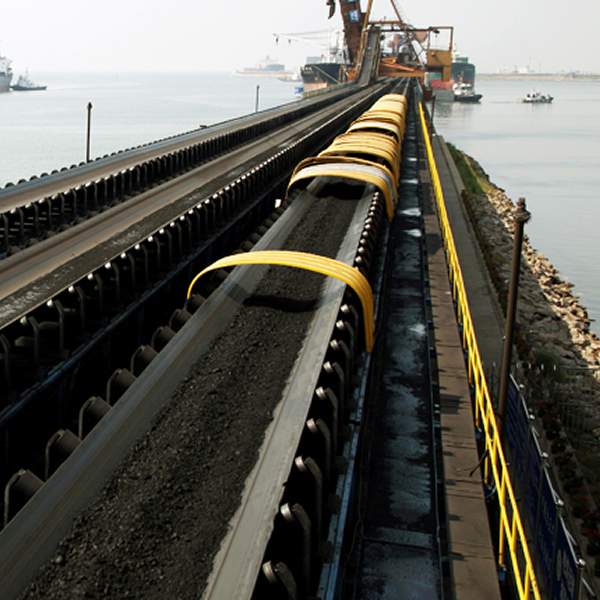

    EP2 EP1

    EP convenyor belt specification and technical data
    Textile Fabric structure Textile Adhesive tape Intensity series(N/nm) Cover thichness(mm) Width(mm) Belt long
    Type Latitude Weft Modal Thickness(mm/P) 2 lyer 3 layer 4 layer 5 layer 6 layer Upper cover Under cover Range
    Polyester Polyester Nylon EP-80 0.8 160 240 320 400 480 2-12 0-6 500-2200 300
    EP-100 0.8 200 300 400 500 600
    EP-125 0.85 250 375 500 625 750
    EP-150 0.9 300 450 600 750 900
    EP-160 0.9 320 480 640 800 960 500-2500
    EP-200 1.05 400 600 800 1000 1200
    EP-250 1.25 500 750 1000 1250 1500
    EP-300 1.35 600 900 1200 1500 1800
    EP-350 1.5 - 1050 1400 1750 2100 600-2500
    EP-400 1.8 - - 1600 2000 2400 600-2500
    Cover layer performance
    Overlay level Tensile strength Mpa Break elongation% Wear quantity mm³ Tensile strength and elongation after aging rate%
    Heavy 24 240 450 120 -25~+25
    Middle 18 180 400 100 -25~+25
    Light 15 150 350 250 -25~+25
    Adhesion strength and extensibility
    Core material Adhesive strength Extension performance
    Cloth layer(N/mm) Cover thickness1.5mm Cover thickness>1.5mm Elongation% Reference force elongation%
    Polyester canvas 4.5 3.20 3.50 10 4
